VasoGuard F14
Battery Powered 14-Channel System

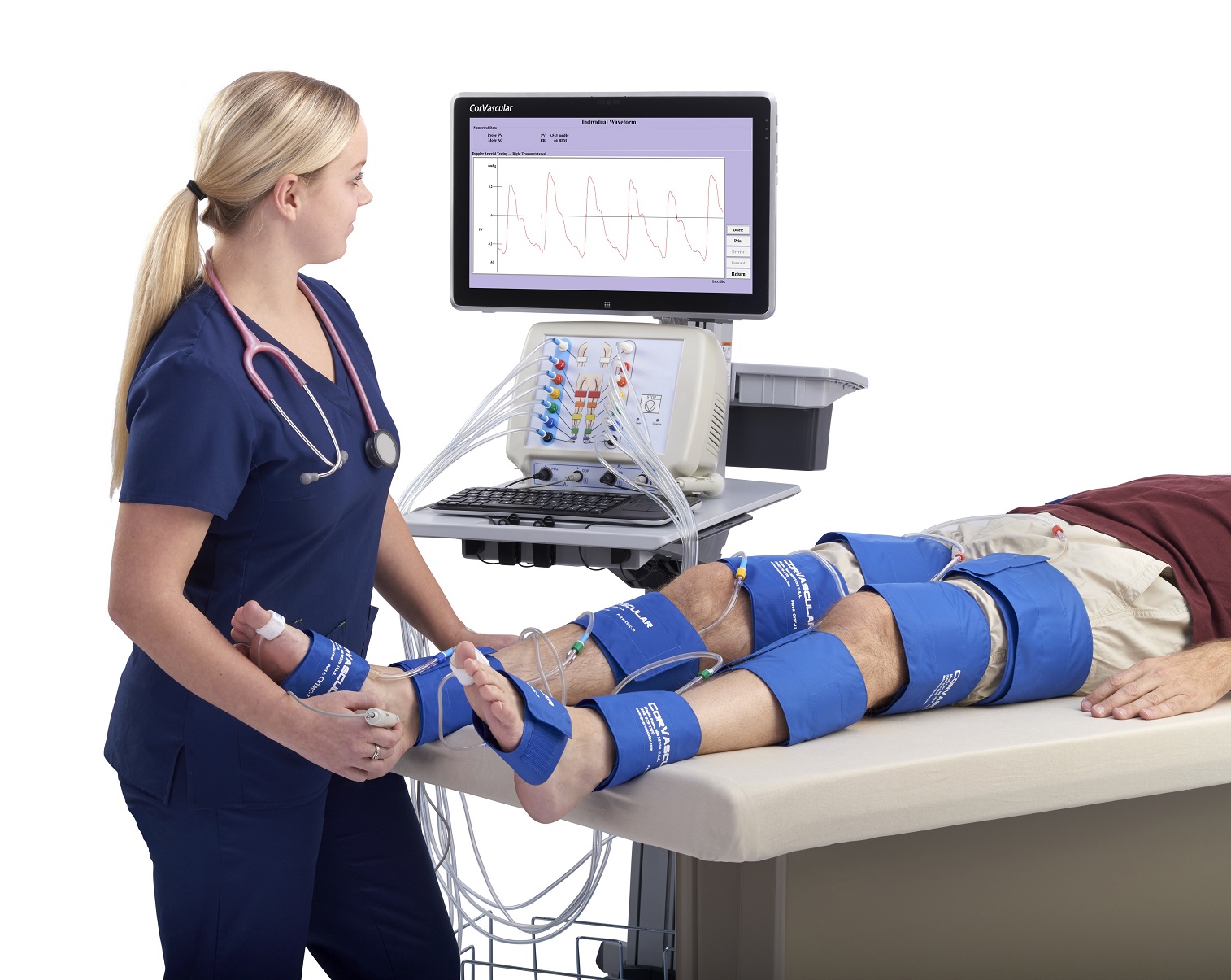

A full featured, battery powered, configurable physiologic system designed for the modern vascular lab, mobile testing service, or high-volume diagnostic clinic.
Advanced 14-Channel Vascular Testing Technology
The F14 combines portable design with advanced 14-channel technology for comprehensive vascular testing and documentation.
Features 14 pressure ports for comprehensive vascular testing and simultaneous measurements.
High-resolution widescreen 22" touchscreen display with 1080p (1920 x 1080) resolution for clear visualization.

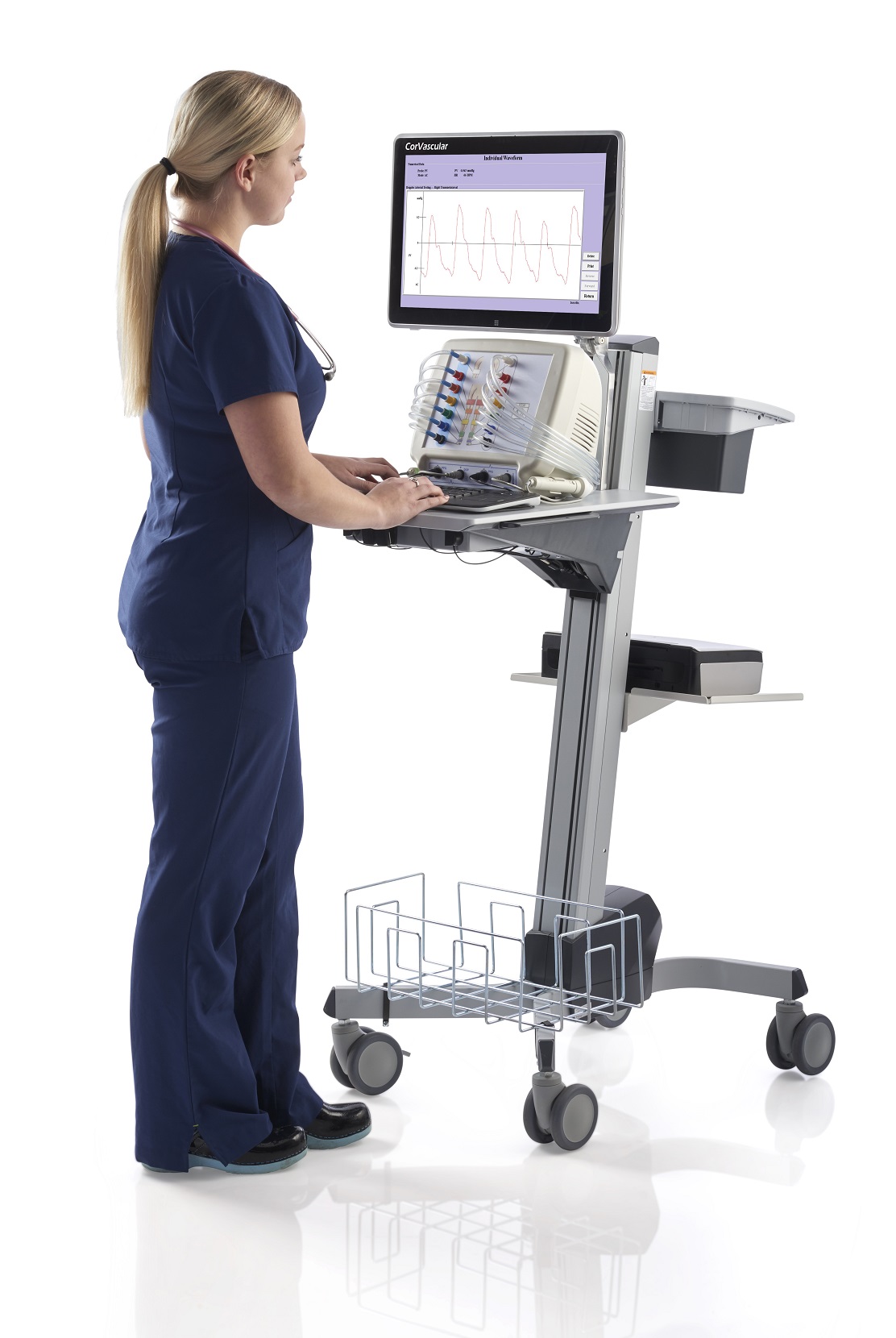

Ergonomic cart with glide height adjustment allows perfect sitting or standing position for any user.
Approximately five hours of run-time on a single charge for extended testing sessions.
Battery powered quad-core processor for fast, reliable performance during testing.
Gigabit Ethernet, WiFi, and Bluetooth connectivity for seamless data transfer and networking.
Complete Vascular Testing Solution

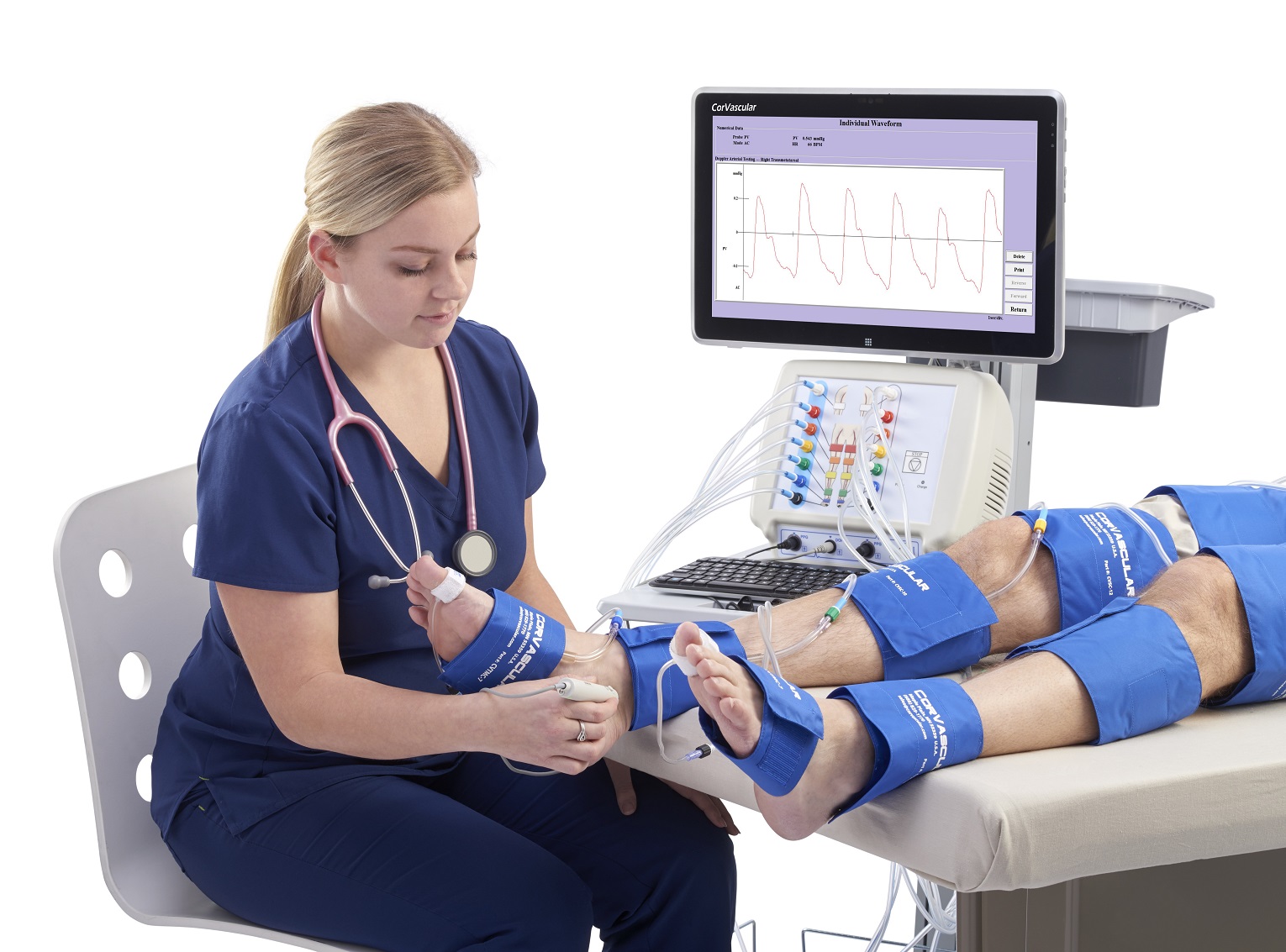

The VasoGuard F14 is designed for comprehensive vascular testing including ABI studies, TBI measurements, PPG toe pressures, venous reflux, and segmental pressure studies. Its comprehensive design makes it ideal for modern vascular labs and high-volume diagnostic clinics.
Ideal Applications:
- Ankle Brachial Index (ABI) studies
- Toe Brachial Index (TBI) studies
- PPG Toe Pressures
- PPG Venous Reflux
- Venous Compressions
- Lower Extremity Studies
- Segmental Pressure Studies
Compliance & Standards
CorVascular F Series VasoGuard meets the following international standards:
ISO 13485:2003; CAN/CSA ISO 13485:2003; EN60601-1; IEC60601-1-2; IEC60601-2-37; IEC62304; IS014971; ANSI/AAMI/ISO 81060-1:2007; ANSI/AAMI/IEC 80601-2-30:2009
Manufactured by Hadeco

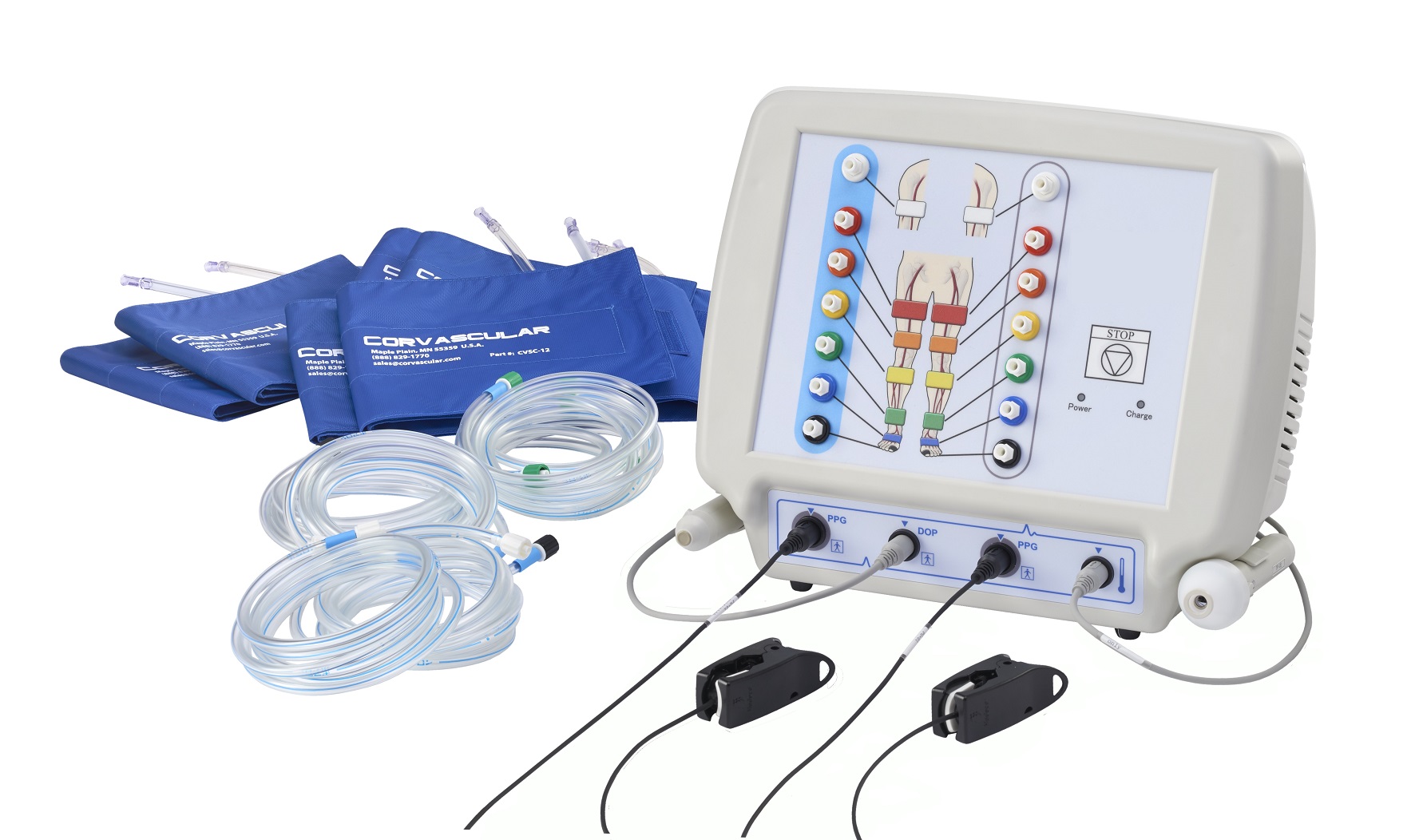

Complete F14 Package
Everything you need for comprehensive vascular testing

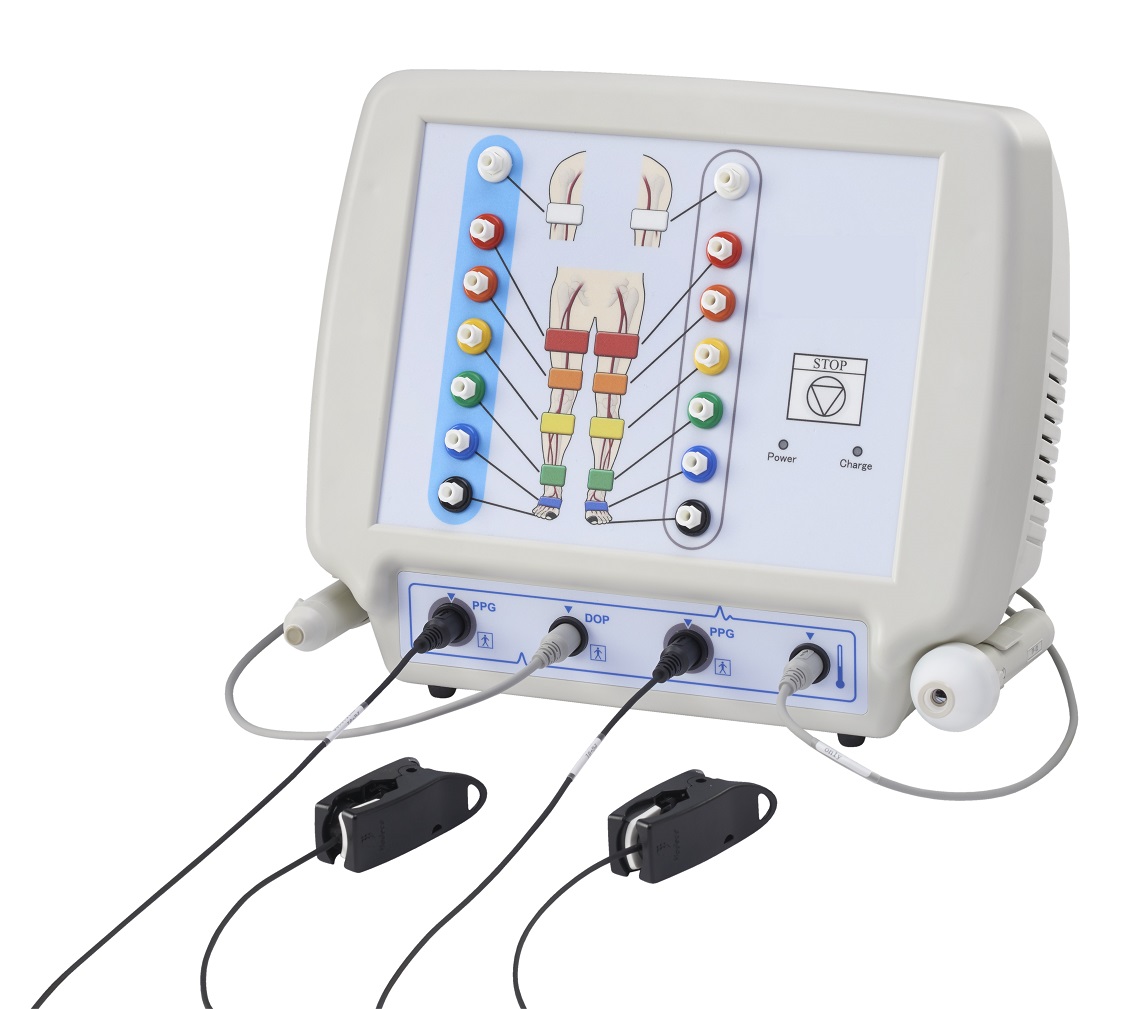

VasoGuard F14 14-Channel Device w/ Rechargeable Battery
Included with VasoGuard F14 system
VasoGuard PC Software with optional DICOM Interface
Included with VasoGuard F14 system

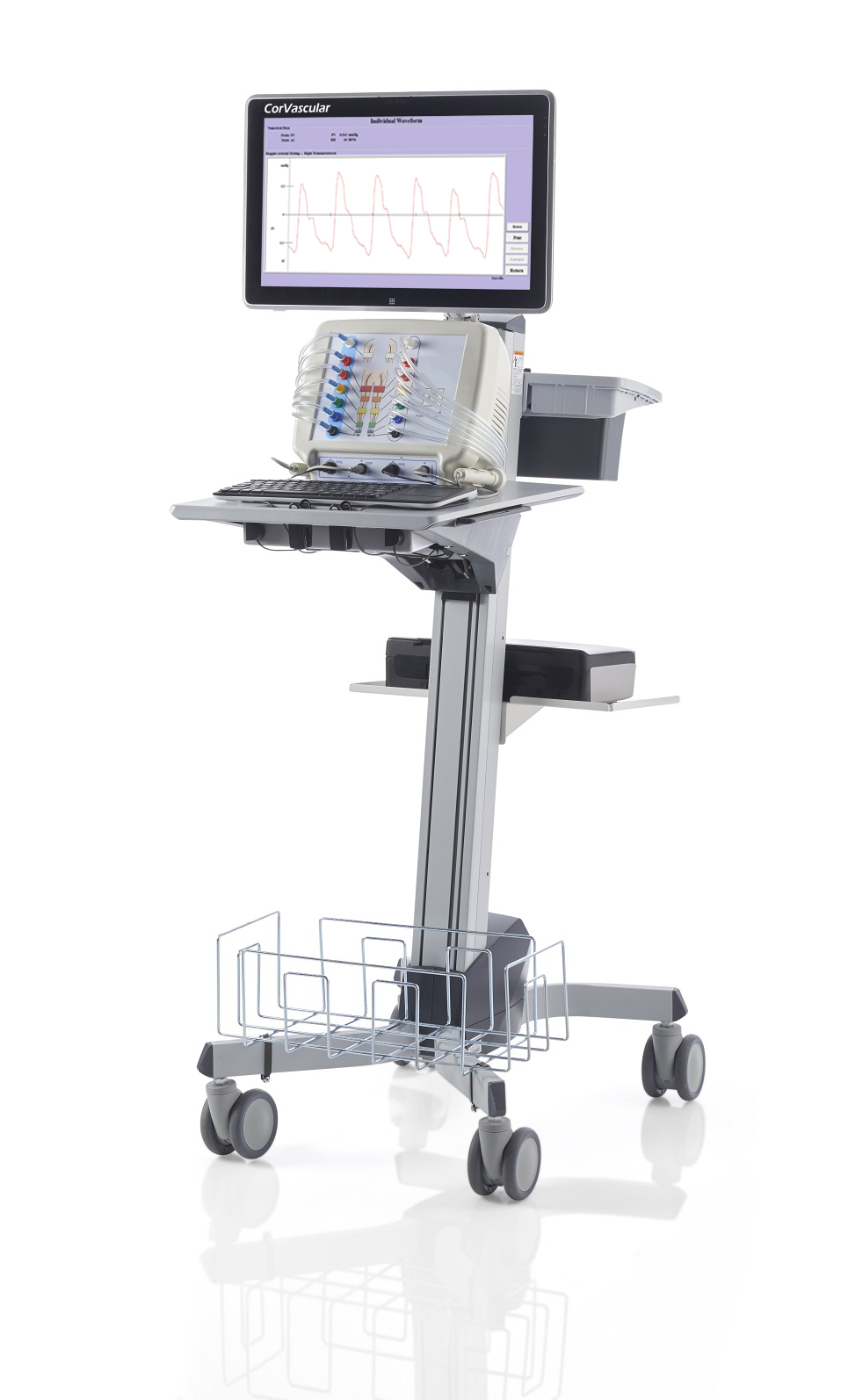

X-Series Express Hi/Low Cart
Included with VasoGuard F14 system

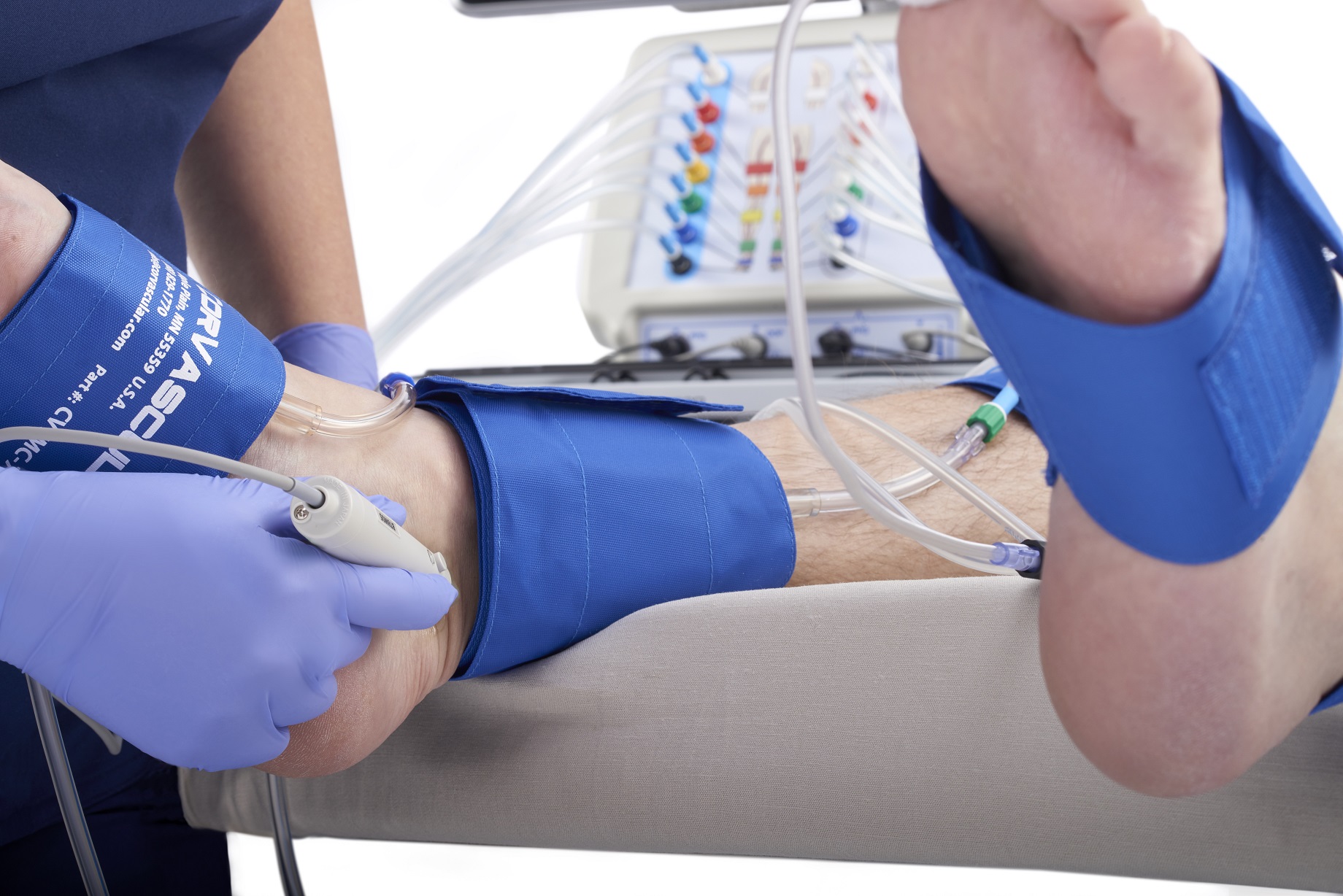

8 MHz Standard Doppler Probe
Included with VasoGuard F14 system

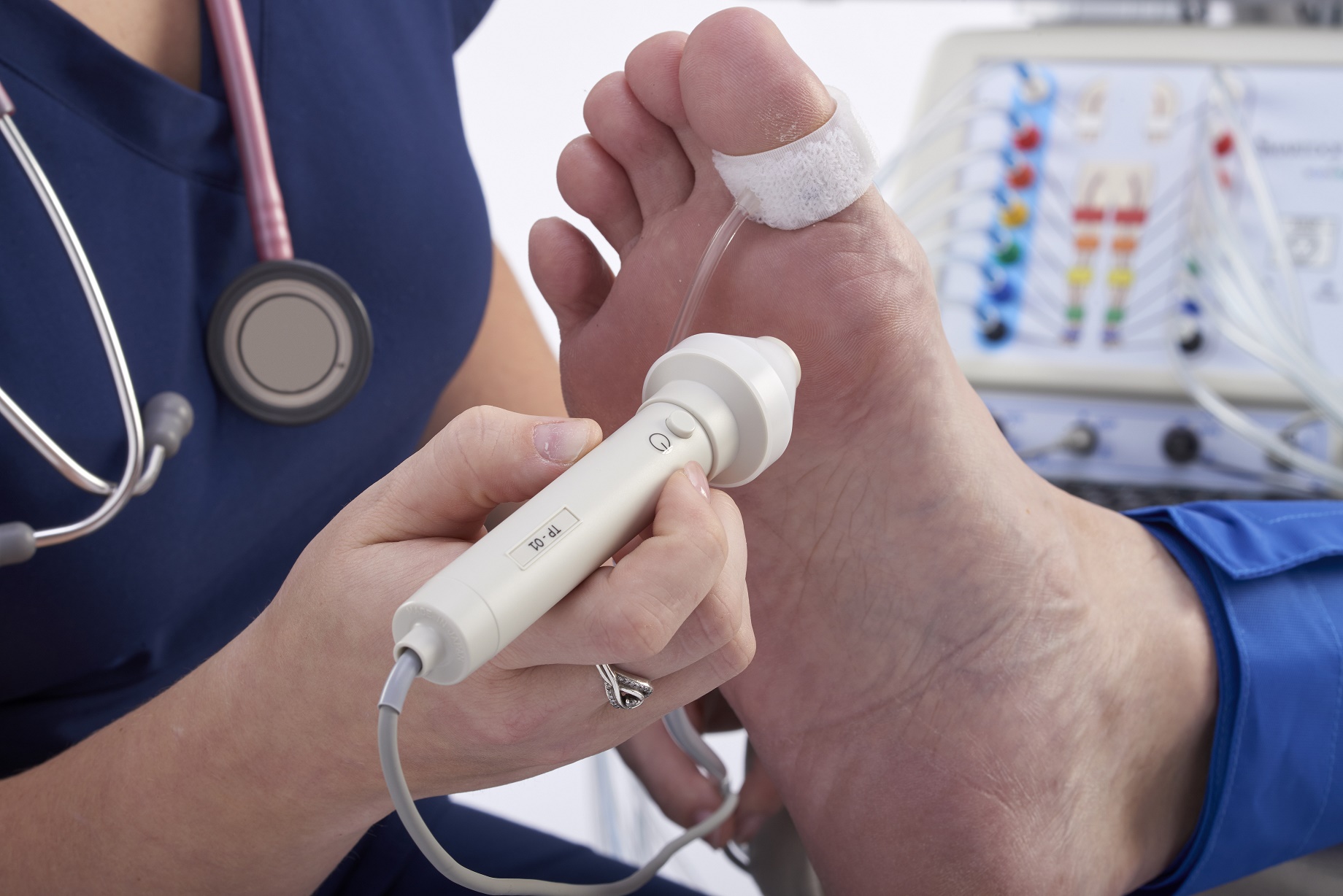

Touchless Temperature Probe
Included with VasoGuard F14 system
2 PPG Probes with Digit Clips
Included with VasoGuard F14 system
F14 Tubing Set
Included with VasoGuard F14 system
22" Touchscreen All-In-One PC with Rechargeable Battery
Included with VasoGuard F14 system
Wireless Keyboard with Built-in Multi-Touch Touchpad
Included with VasoGuard F14 system
Comprehensive Cuff Set: SC10, SC12, SC12L, TMC7, 2.5 Long Digit, & 1.9 Digit Cuffs
Included with VasoGuard F14 system
Available Options
Choose the right options for your specific testing needs
8 MHz Flat Doppler Probe
Eliminates the need to hold the probe during testing for hands-free convenience.
5 MHz Pencil Doppler Probe
Lower frequency probe for deeper penetration and larger vessel assessment.
10 MHz Pencil Doppler Probe
Higher frequency probe for superficial vessels and detailed imaging.
2.25 MHz Fetal Doppler Probe
Specialized probe for fetal heart rate monitoring and obstetric applications.
2.25 MHz Flat Doppler Monitoring Probe
Flat monitoring probe for continuous monitoring applications.
Touchless Foot Temperature Probe
Advanced temperature monitoring for comprehensive vascular assessment.
Why Choose the VasoGuard F14?
Experience comprehensive vascular testing with advanced handheld Doppler technology
Ideal for Modern Labs
Perfect for modern vascular labs, mobile testing services, or high-volume diagnostic clinics with comprehensive design.
Advanced Touchscreen Interface
22" high-resolution touchscreen display with wireless keyboard for intuitive operation and clear visualization.
Ergonomic Design
Variable height cart with glide height adjustment allows perfect sitting or standing position for any user.
Extended Battery Life
Approximately five hours of run-time on a single charge for extended testing sessions without interruption.
14-Channel System
Features 14 pressure ports for comprehensive vascular testing and simultaneous measurements with advanced capabilities.
Complete System
Includes 14-channel device, touchscreen PC, cart, probes, comprehensive cuff set, and 2-year warranty.
Ready for Advanced 14-Channel Vascular Testing?
Experience comprehensive vascular testing with advanced 14-channel technology. Contact our sales team to learn more about the VasoGuard F14.
