Professional System

VasoGuard V8

Advanced Vascular Testing System

The V8 delivers professional-grade performance with enhanced features for modern healthcare facilities. This system offers improved accuracy, faster response times, and expanded connectivity options, making it ideal for medium to large practices.

Professional

Advanced 8-Pump Vascular Testing Technology

The V8 combines professional design with advanced 8-pump technology for comprehensive vascular testing and documentation.

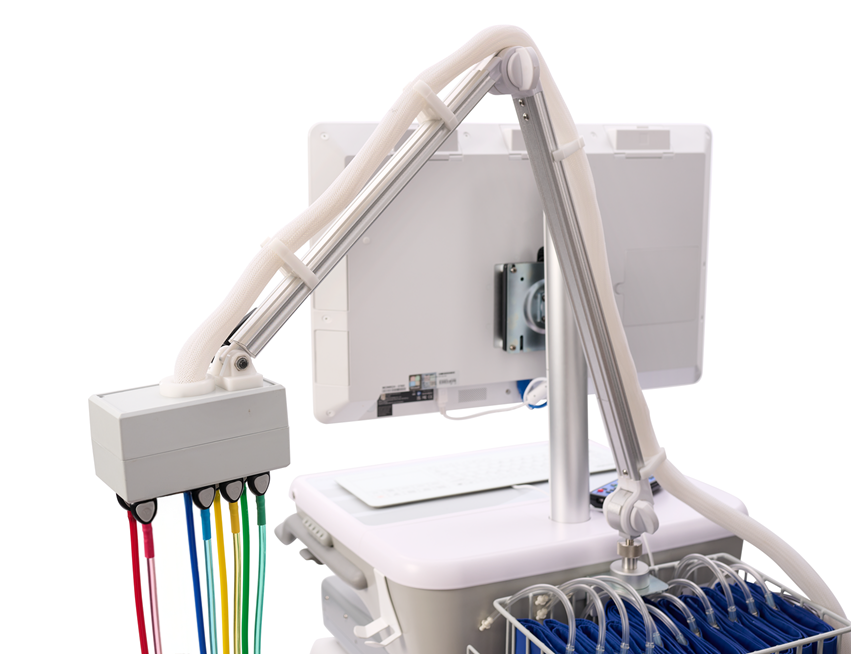

8 Air Hoses

Features 8 independent pressure pumps for comprehensive vascular testing and simultaneous measurements.

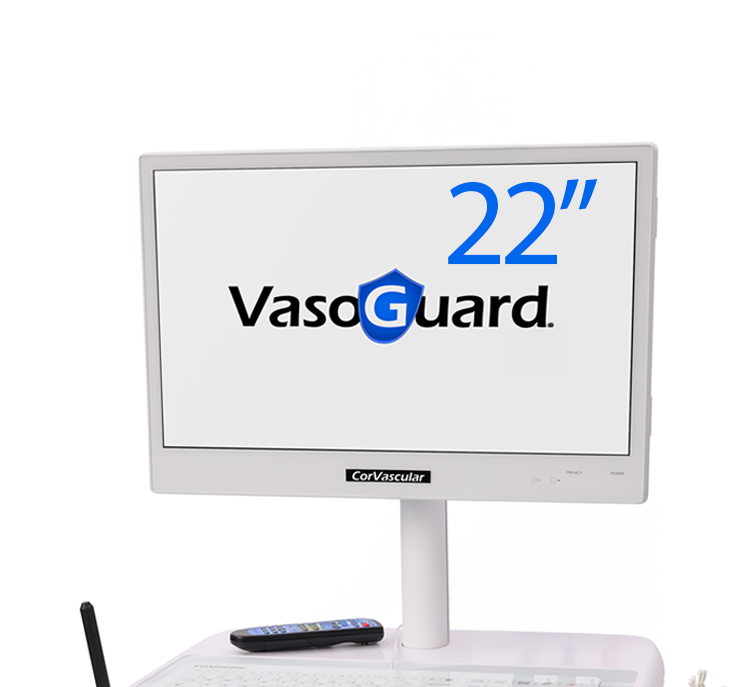

22" Touchscreen Display

High-resolution medical-grade 22" touchscreen display with antimicrobial coating for clear visualization.

H1 Height Adjustable Cart

Ergonomic cart with height adjustment allows perfect sitting or standing position for any user.

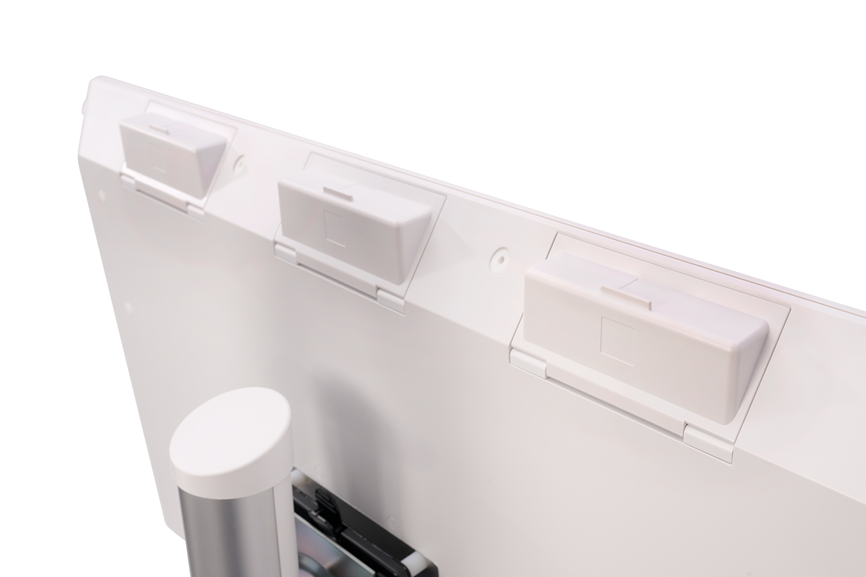

5+ Hour Battery Life

More than five hours of run-time on a single charge for extended testing sessions.

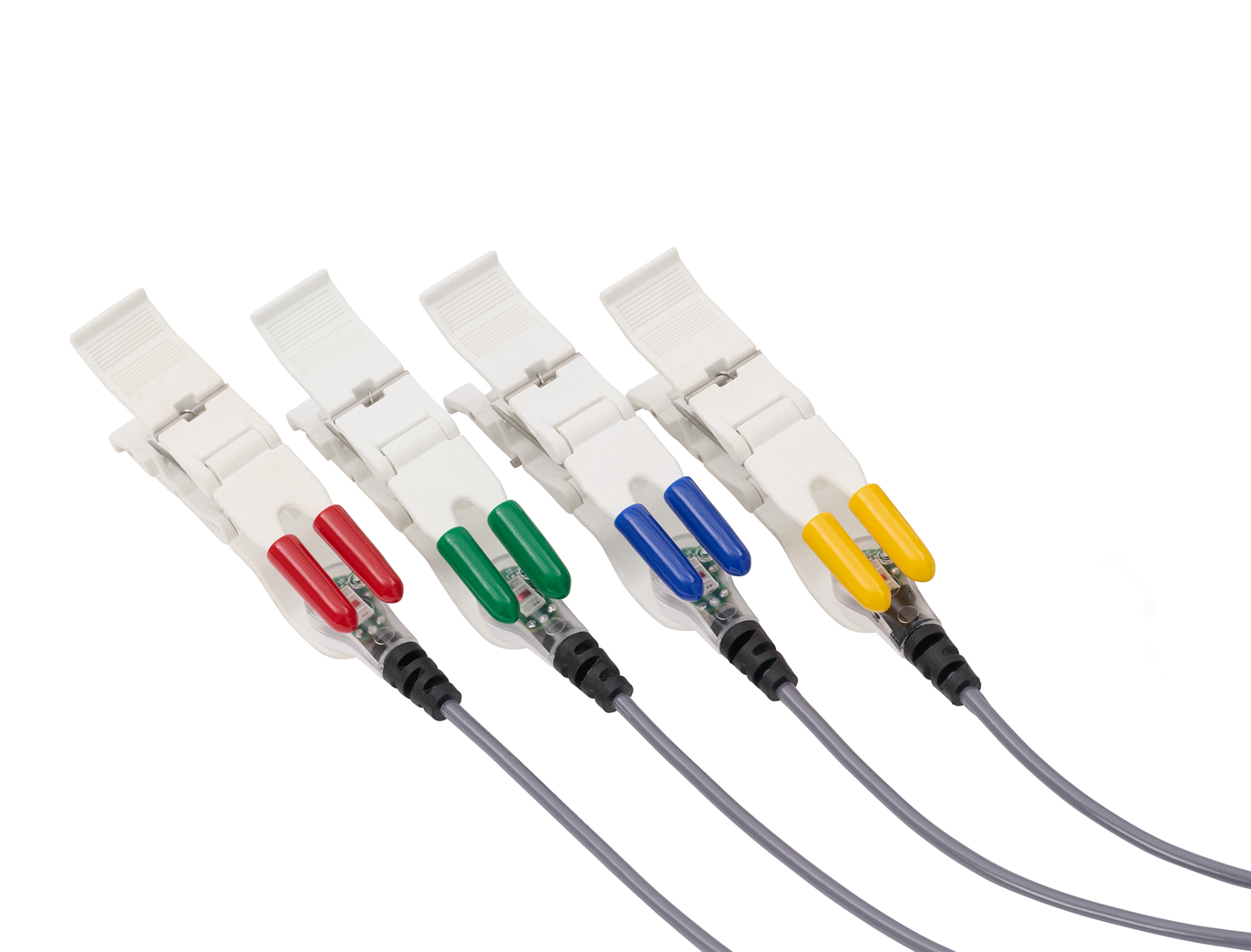

4 PPG Probes

Four waterproof PPG probes with digit clips for comprehensive photoplethysmography testing.

2 Doppler Ports

Two continuous wave Doppler ports (8 MHz + 4 MHz) for comprehensive vascular assessment and monitoring.

Complete Vascular Testing Solution

The VasoGuard V8 is designed for comprehensive vascular testing including ABI studies, TBI measurements, PPG toe pressures, venous reflux, and segmental pressure studies. Its professional design makes it ideal for modern vascular labs and medium to large diagnostic clinics.

Ideal Applications:

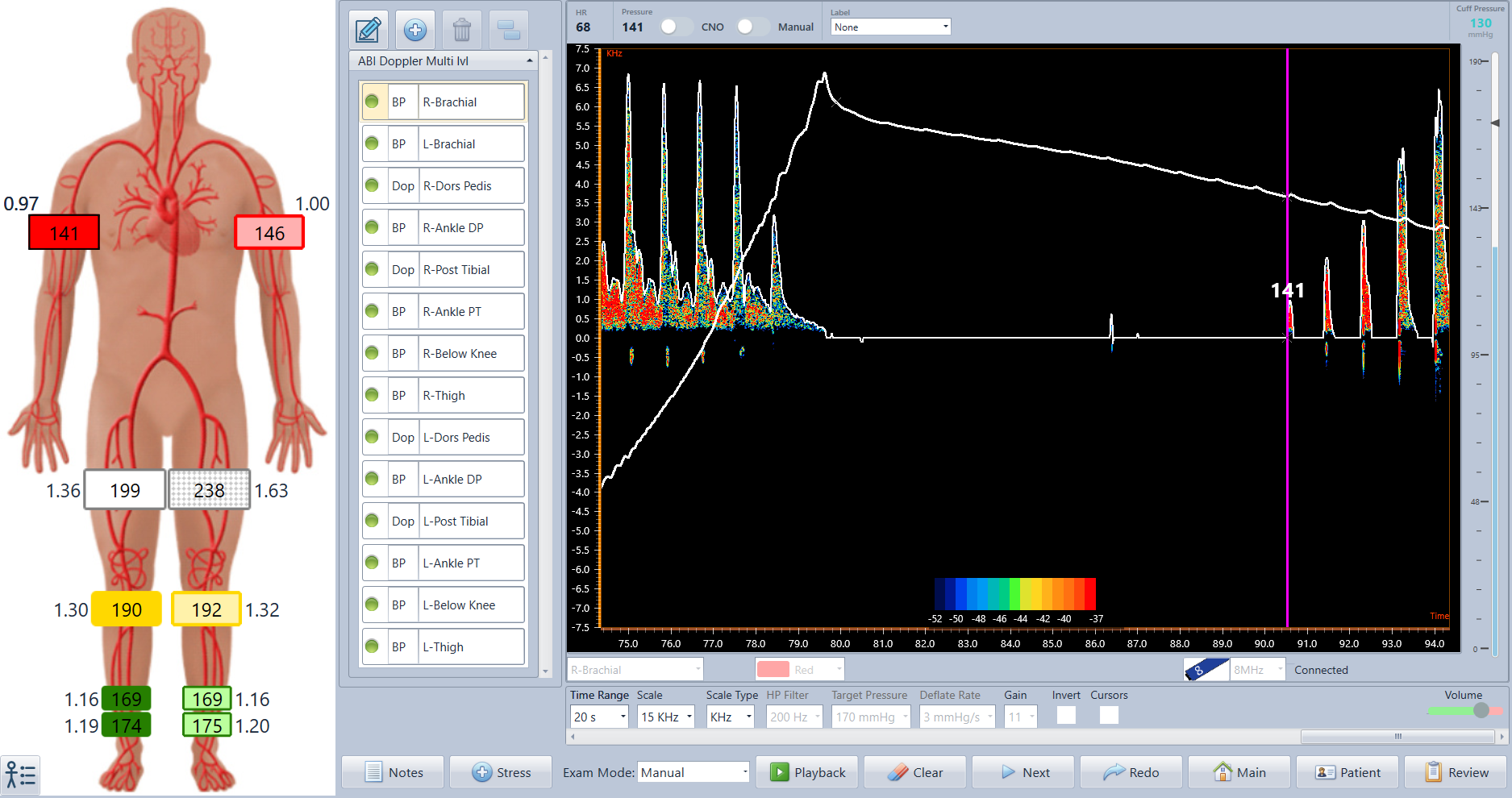

Ankle Brachial Index (ABI) studies
Toe Brachial Index (TBI) studies

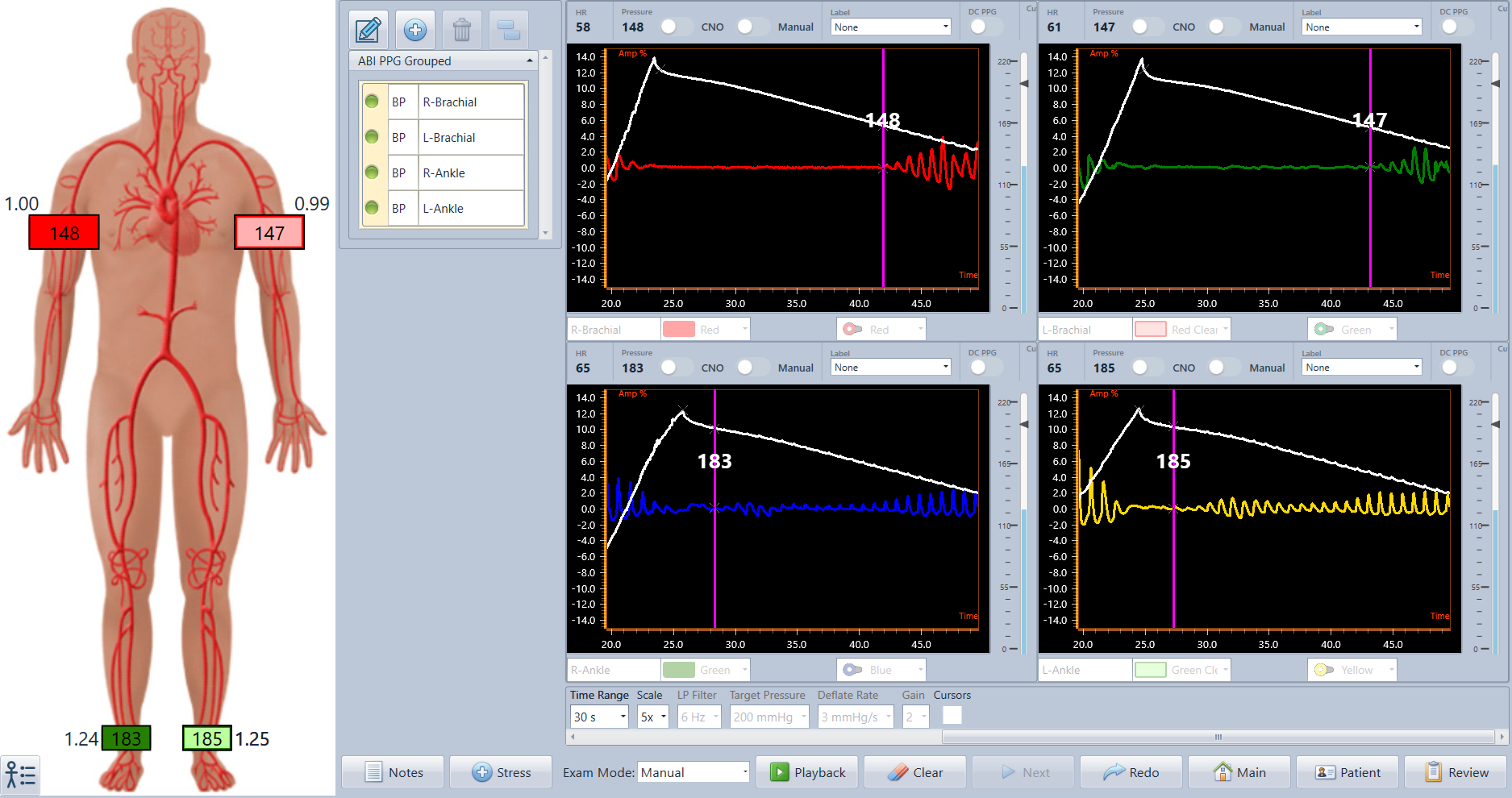

PPG Toe Pressures
PPG Venous Reflux
Venous Compressions
Lower Extremity Studies
Segmental Pressure Studies

Compliance & Standards

The entire VasoGuard V-Series system (cart, computer, and all accessories) as it is delivered to customers has been certified compliant with all applicable global regulatory requirements for physiological testing devices, including:

IEC 60601-1 Edition 3.1: General requirements for basic safety and essential performance.
IEC 60601-1-2 Edition 4.0: Electromagnetic disturbances - Requirements and tests.
ISO 14971 Third Edition: Medical devices - Application of risk management to medical devices.
IEC 62304 Edition 1.1: Consolidated Version: Medical devices - Application of risk management to medical devices.
ISO 10993-1 Fifth edition: Biological evaluation of medical devices - Part 1: Evaluation and testing within a risk management process.
IEC 80369-5: Edition 1.0: Small-bore connectors for liquids and gases in healthcare applications - Part 5 connectors for limb inflation applications [Including Corrigendum 1 (2017) and Corrigendum 2 (2021)].
ISO 80601-2-30: Edition 2.0: Particular requirements for the basic safety and essential performance of automated non-invasive sphygmomanometers.
ISO 60601-2-37 Edition 2.1: Particular requirements for the basic safety and essential performance of ultrasonic medical diagnostic and monitoring equipment.
ISO 80601-2-61 2017-12 (Corrected version 2018-02): Part 2-61: Particular requirements for basic safety and essential performance of pulse oximeter equipment.
ISO 81060-1 First edition: Non-invasive sphygmomanometers — Part 1: Requirements and test methods for non-automated measurement type.
IEC 60068-2-27 Edition 4.0: Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock.
IEC 60068-2-64 2008+AMD1:2019 CSV: Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband random and guidance.
AIM 7351731 Rev. 2.00: Medical Electrical Equipment and System Electromagnetic Immunity Test for Exposure to Radio Frequency Identification Readers.
IEC 62359 Edition 2.1 2017-09 Consolidated Version: Ultrasonics - Field characterization - Test methods for the determination of thermal and mechanical indices related to medical diagnostic ultrasonic fields.
